7 inch autoradio factory, Double din 7 inch autoradio manufacturers,autoradio suppliers

MP5 Player 7" Touchscreen

Android GPS Navigation

80 Watts x 4 Max Power

RDS/DAB+Tuner

Plays Bluetooth/MP5/USB/SD,

MP3, WMA, FM/AM

USB, SD, Aux, Rear Camera,

Steering Wheel Control Input

Video, Front, Rear & Sub Pre Amp Outputs

Wireless Remote, USB Charging

7'' Double DIN MP5/MP4/MP3

Description

Android 7 inch autoradio factory, Double din 7 inch autoradio manufacturers,autoradio suppliers

Product Description

This unit will fit the following car model: Double din Size 7 inch autoradio

The Megan Double DIN Android Stereo 7 inch autoradio Receiver System is a reliable multimedia car device that makes driving fun and worthwhile with its easy to use this 7 inch autoradio interface and multiple features such as bluetooth and Wi-Fi connectivity, and the dependable built-in navigation system that will safely take you to your destination. Comes with power & wiring harness, and chassis mounting case frame.

Hot Selling 2019 Car Mp3 Player 7 inch autoradio Recommendation

Headunit Receiver of 7 inch autoradio :

Integrated Google Maps Navigation Software
Download Apps, Surf the Web, Play Games
Versatile Digital Media File Support & Playback

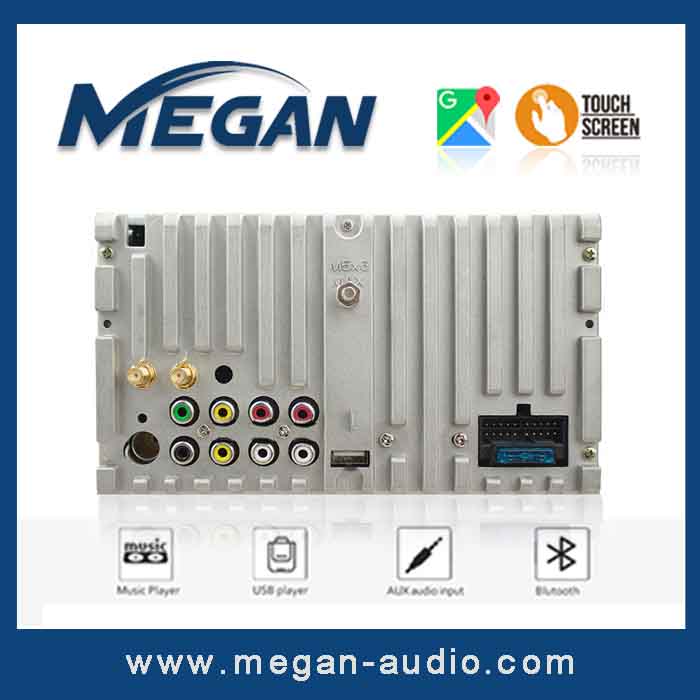

Rear Panel: Subwoofer Output, USB Flash Reader
Audio Aux (RCA) Input/Output Connector Jacks
Video Aux (RCA) Input Connector Jack
Rearview Backup Camera Support
Customizable EQ Audio Controls
Picture Configuration: Brightness, Contrast, Color

Android OS Computer of 7 inch autoradio:

Surf the Web & Download Apps
Multi-Touch Capacitive Display Screen
Smart Device MirrorLink Support
Processor: Quad Core 1.20 Ghz Cortex
OS Version: Android 8.0 (Lollipop)

GPS Navigation of 7 inch autoradio:

Touch Screen Control Interface
Drive Safe & Smart: Helps Keep Your Eyes on the Road

Bluetooth Connectivity of 7 inch autoradio :

Compatible with All of Your Favorite Bluetooth Devices
(Smartphones, Tablets, MP3 Players, Laptops, etc.)
Convenient Contact List Import Ability
Digital Phone Dial Pad Display
Bluetooth Version: 2.1 +EDR
Bluetooth Network Name: ‘Megan Car Kit’
Bluetooth Network Password: ‘0000’ (4 Zeroes)

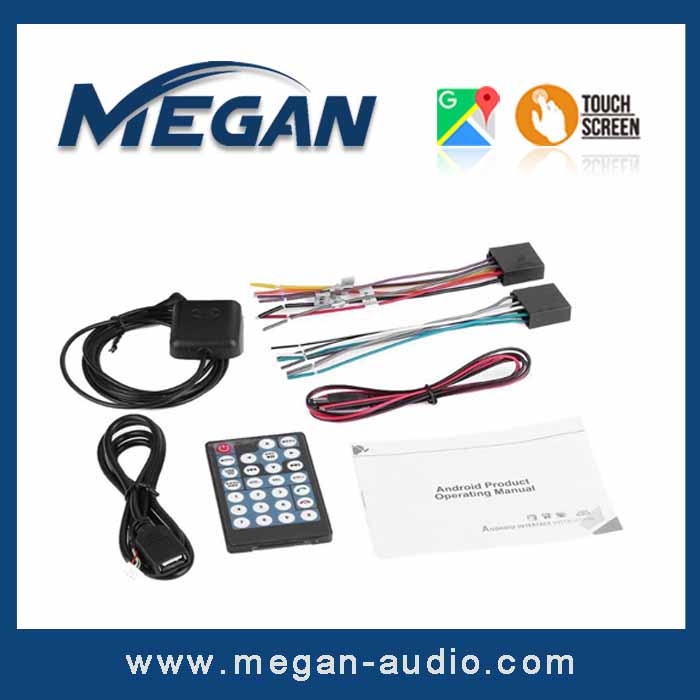

What’s in the Box:

7 inch autoradio Android Stereo Receiver
Power & Wiring Harness
Chassis Mounting Case Frame
Wireless Remote Control

Technical Specs of 7 inch autoradio:

Single DIN Size Universal Standard
Power Output: 4 x 80 Watt (320 Max.)
Wide Screen TFT – LCD Display
Display Resolution: 1024 x 600 Pixels
Aspect Ratio 16:9 High Definition
Bluetooth A2DP Support
Impedance: 4 Ohm
Video System: NTSC/PAL (Auto Recognition)
Response Time: Up 30 ms, Down 50 ms
AM/FM/RDS-MPX 2 Band Radio – Auto Store, Preset, Scan
Anti-Shock Mechanism-ESP Function
LO/DX & ST/MO Selector
PLL Synthesizer Tuner Radio Frequency
File Compatibility: JPEG, MP3, MP4, AVI, WAV and More
Maximum USB/Micro SD Flash Memory Support: Up to 64GB
Power: DC 12V

Technical Specs Details (7 inch autoradio ):

System	Working voltage	DC 9V～16V
	Working current	1.0 ～10A
	Working temperature	-40°C ～85°C
	Sleep current	≤9MA
	Max current antenna output	500mA
	Standby current	≤3MA
	7 inch autoradio GPU	PowerVR G6110 GPU
	7 inch autoradio CPU	RockChip PX5,Cortex-A53,Octa-core,max 1.5GHz
	Operate System	Android 8.0
	7 inch autoradio RAM	DDR3 2GB (or 4GB)
	7 inch autoradio ROM	EMMC 16GB (or 32GB)
	7 inch autoradio Flash	NIL
	7 inch autoradio Display	lcd
	7 inch autoradio Clock	yes
	Clock setting	yes
Display Screen	Screen Type:	TFT LCD -Hanstar
	Screen Sensitiveness	Capacitive
	Display mode:	16:9
	Screen inclination:	4 stages
	Resolution:	800480/1024600/1024768/ max 20481536
	Screen brightness:	450cd/㎡
Radio	Wave Band	AM/FM
	FM Frequency Range	87.5MHz～108MHz; STEP: 0,1 Mhz
	AM Frequency Range	520MHz～1710 MHz; STEP: 10 Mhz
	FM/AM IC model: (optional)	TDA-7703 (AM+FM)
	Tune method:	PLL frequency complex tune
	Display method:	TFT Graphical User Interface OSD
	Storage quantity:	FM radio :18 channels, AM radio: 12 channels
	Search method:	Automatic/Manual
	District Setting	Asia/North America/South America/europe
	RDS (TA, AF, PTY):	Optional
DVD(opotional）	DVD loader	XIANG WU
	DVD decorder	HD-860MB-C
	Video output range:	1+10.2Vp-p (75Ω)
	Disc spec Diameter:	12cm disc
	Compatible disc:	DVD/VCD/CD/MP3/MP4/DIVX/RMVB 720P
Amplifier	Testing voltage:	14.4V
	Maximum power output:	4X40W
	Amplifier IC:	TDA-7388
	Subwoofer Output	yes
	Speaker impedance:	4Ω
	Support 2Ω	NO
Audio	7 inch autoradio Output:	4 + 1 subwoofer output
	7 inch autoradio Input:	2 + Front AUX 3.5MM
	Support Audio format:	mp3、wma、ape、flac、aac
	Audio line output:	3V＠14.4V,1KHz,3%
	Track imbalance degree:	≤2dB
	S/N ratio:	>=60db
	Segregative degree:	≥55dB
	Frequency response:	20Hz～20KHz(±3dB)
	Range Volume:	0～40
	Volume adjustment:	Medium 1KHZ±7dB High10KHZ±7dB
	7 inch autoradio Bass	yes
	7 inch autoradio Middle	yes
	Treble	yes

	High Pass Filter	NO
	Fader/Balance	yes
	Subwoofer Eq.	NO
	Processor:	Sunplus 8288A, 7 band EQ
	Pre-set Equalization	Custom/Pop/Classic/Rock/Jazz/Flat/Dance/Live
Video	7 inch autoradio Output:	2
	7 inch autoradio Input:	1 input+ front & rear camera input
	Qty AV out	2 AV out and 2 video only
	Qty AV in	1 AV in and 1 video only
	Output voltage:	1.0±0.2 Vp-p
	DVD horizontal definition:	≥480 TV lines
	Video Decode Resolution	1080P
	Support Photo format:	JPEG,BMP, ect
	Support Media format:	mp4、avi、wmv、rmvb、flv、mkv、mov、ts、3gp、 mpg1080P@60FPS(H.264 H.265)
7 inch autoradio GPS	Processor:	Built-in
	Max.main frequency:	/
	EMS Memory:	/
	Storage device:	/
	Operation system:	/
	Audio output:	Stereo output of CD tone
	Human machine interface:	Support infrared remote control and touch screen operation
Bluetooth	Bluetooth	4.0 Version
	HFP/HSP,A2DP,AVRCP:	yes
	Microphone:	yes
	Received Call:	yes’
	Dialled Call:	yes
	Missed Call:	Stereo output of CD tone
	Download Contacts/phonebook:	yes
	Auto Reconnect:	yes
	Name search:	Per customer’s request
TV tuner	7 inch autoradio ISDBT	Optional
	Built-in Digital TV:	yes
	Digital TV type:	yes
	Closed Caption On/Off	yes
Storage Media	SD Card Slot:	yes
	USB Port:	yes
	USB Charger Support:	yes
	File browse	yes
	SD Card capacity:	one way, 3.0, 4~64GB
	USB support capacity:	two way, 2.0, 4~64GB
Other Functions	Mirror Link:	IOS & Andriod
	Mirror Link SO Compatible:	Android 4.2~Android 8.0
	DVR:	Support USB DVR function
	WIFI:	802.11 b/g/n
	Dual-Zone:	yes
	Steering Wheel Control:	yes
	Remote control:	yes
	CANBUS:	yes
	Virtual 9 Discs:	yes
	Button Light:	Customized RGB Coilr Illumination
	Connector Type:	IOS connector
	Handbrake	YES
	USB 3G Dongle	no
	Wallpaper set	Yes
	Open Screen Set	Change freely (ex. different car brands logo)
	RGB (Different LED colors)	7 colors
	Support Cellphone on USB	no
	Current >1A on USB	Optional
